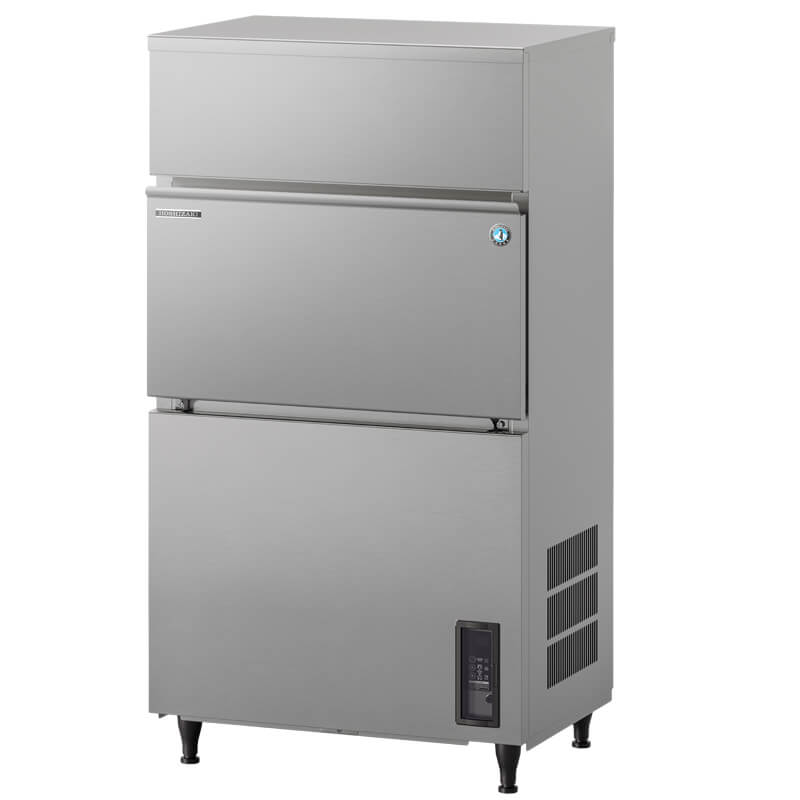

Hoshizaki Elite Cube IM-130WPE-E - standard cube (28 x 28 x 32mm) 108kg
€5,997.60*
€8,568.00 (30% saved)Product information "Hoshizaki Elite Cube IM-130WPE-E - standard cube (28 x 28 x 32mm) 108kg"

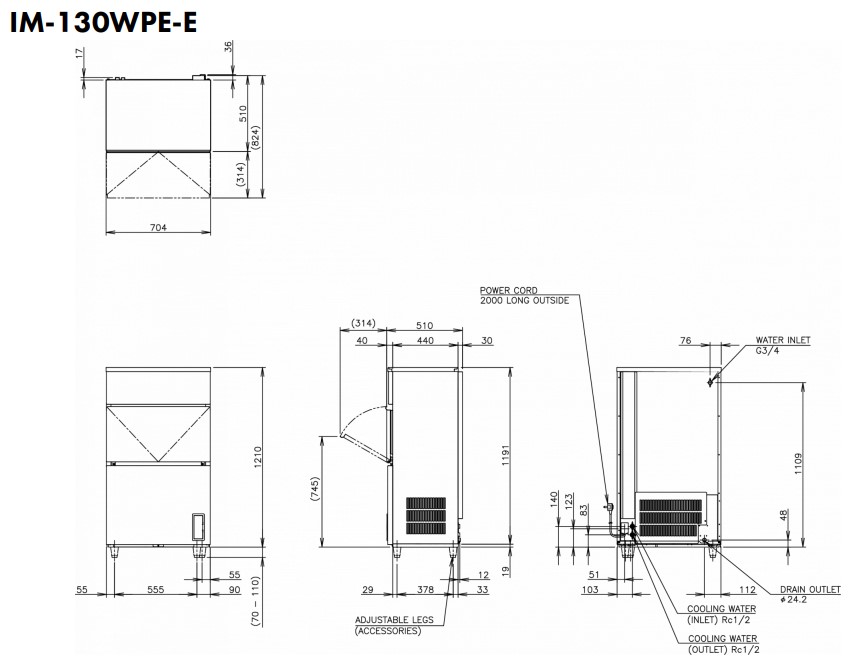

Dimensions (W x D x H) (cm): 70,4 x 50,6 x 121
Height including feet (cm): 128-132
Refrigerant: R290
Cooling system: water-cooled
Power supply: 1/220–240 V/50 Hz
Power consumption (kW): 0.53
Ice type: cube ice
Cube size (mm): 28 x 28 x 32
Storage bin (kg): 50
The Hoshizaki IM-130WPE-E series is specifically designed for applications where space constraints, ambient conditions, or installation requirements make water-cooled systems the preferred solution. The water-cooled refrigeration system is particularly suitable for environments with high ambient temperatures or limited air circulation.
With their compact design and integrated storage bin, these plug-and-play ice machines provide a space-saving all-in-one solution for bars, kitchens, and service areas with limited space. The integrated drain pump as standard also allows flexible installation, independent of the drain position.
The EliteCUBE series features an integrated UV-C hygiene function for disinfecting water-carrying components and circulating water. In combination with the closed water circuit, this helps protect the entire production process from external influences and supports consistently high ice quality.
Ice is produced using the closed cell system: each cube is formed individually with fresh water, while excess water is efficiently drained away. Automatic rinse cycles reduce mineral build-up and ensure clear, compact, and neutral-tasting ice cubes.
An electronic control system and a magnetic DC water pump without direct coupling support stable performance and enhance operational reliability. At the same time, the system contributes to efficient water and energy usage.
The units use the natural refrigerant R290 and are designed for sustainable and energy-efficient operation.
The unit is supplied with an installation kit, adjustable legs, and an ice scoop.
Note: For water-cooled units, the condenser circuit should be connected to a closed-loop system. Connecting such equipment directly to the mains water supply may violate local water authority regulations.
| Ice type: | Cubes |
|---|---|
| Production method: | Negative spray |
| Cooling: | Water-cooled |
| Cube size: | Standard cube (28 x 28 x 32mm) |
| Special equipment: | Drain pump, UV disinfection system |
| Warranty : | 3 years (professional installation) |
