Hoshizaki Ultra Cube IM-130WPE-U - standard cube (28 x 28 x 32mm) 108kg
€5,647.74*
€8,068.20 (30% saved)Product information "Hoshizaki Ultra Cube IM-130WPE-U - standard cube (28 x 28 x 32mm) 108kg"

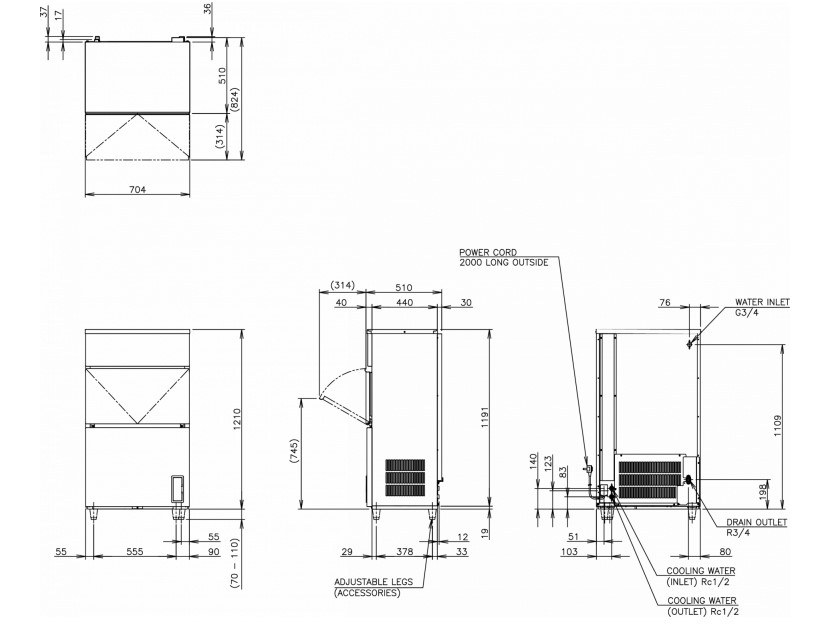

Dimensions (W x D x H) (cm): 70,4 x 50,6 x 121
Height including feet (cm): 128-132
Refrigerant: R290
Cooling system: water-cooled
Power supply: 1/220–240 V/50 Hz
Power consumption (kW): 0.53
Ice type: cube ice
Cube size (mm): 28 x 28 x 32
Storage bin (kg): 50
The Hoshizaki IM-130WPE-U series combines water-cooled refrigeration technology with an integrated UV-C hygiene function and is designed for professional environments where high standards of hygiene and operational reliability are essential. The water-cooled system ensures stable performance even in high ambient temperatures or where air circulation is limited.
As plug-and-play units with an integrated storage bin, the machines are ready for immediate use and are suitable for gastronomy, hospitality, and applications requiring consistently high ice quality.
The integrated UV-C hygiene function provides continuous disinfection of water-carrying components and circulating water. In combination with the closed water circuit, this helps protect the production process from external influences and supports consistently high ice quality.
Ice is produced using the closed cell system: each cube is formed individually with fresh water, while excess water is efficiently drained away. Automatic rinse cycles reduce mineral build-up and ensure clear, compact, and neutral-tasting ice cubes.
A magnetic DC water pump without direct coupling ensures reliable operation, reduces wear, and minimizes the risk of leakage. The electronic control system supports stable performance even under changing conditions.
The units use the natural refrigerant R290 and are designed for energy-efficient operation.
For specific installation requirements, a drain pump can be optionally added. This feature is not included as standard and allows greater flexibility in positioning the unit.
Thanks to their compact design, the models are also suitable for locations with limited space or demanding installation conditions.
The unit is supplied with an installation kit, adjustable legs, and an ice scoop.
Note: For water-cooled units, the condenser circuit should be connected to a closed-loop system. Connecting such equipment directly to the mains water supply may violate local water authority regulations.
| Ice type: | Cubes |
|---|---|
| Cooling: | Water-cooled |
| Cube size: | Standard cube (28 x 28 x 32mm) |
| Special equipment: | Drain pump, UV disinfection system |
