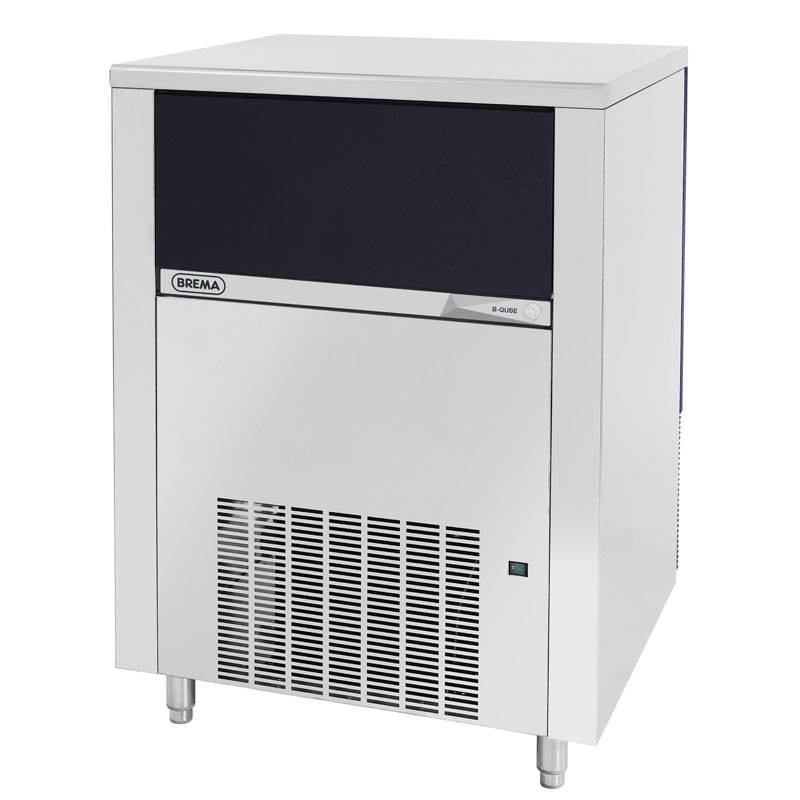

Brema Ice Cube Maker CB Series 1565A HC B-QUBE DP - Cubes (152 kg)

Name: Brema Ice Cube Maker CB Series 1565A HC B-QUBE DP - Cubes (152 kg)
Brand: Brema
SKU: 13582
Price: 3702.73 EUR
Availability: OutOfStock

order no. 13582

€3,702.73

€5,568.01

Prices incl. VAT plus shipping costs, free shipping (DE) from 99€**

Details

delivery time:

4-9 Working days

Description FAQ Downloads Manufacturer

Product properties for Brema Ice Cube Maker CB Series 1565A HC B-QUBE DP - Cubes (152 kg)

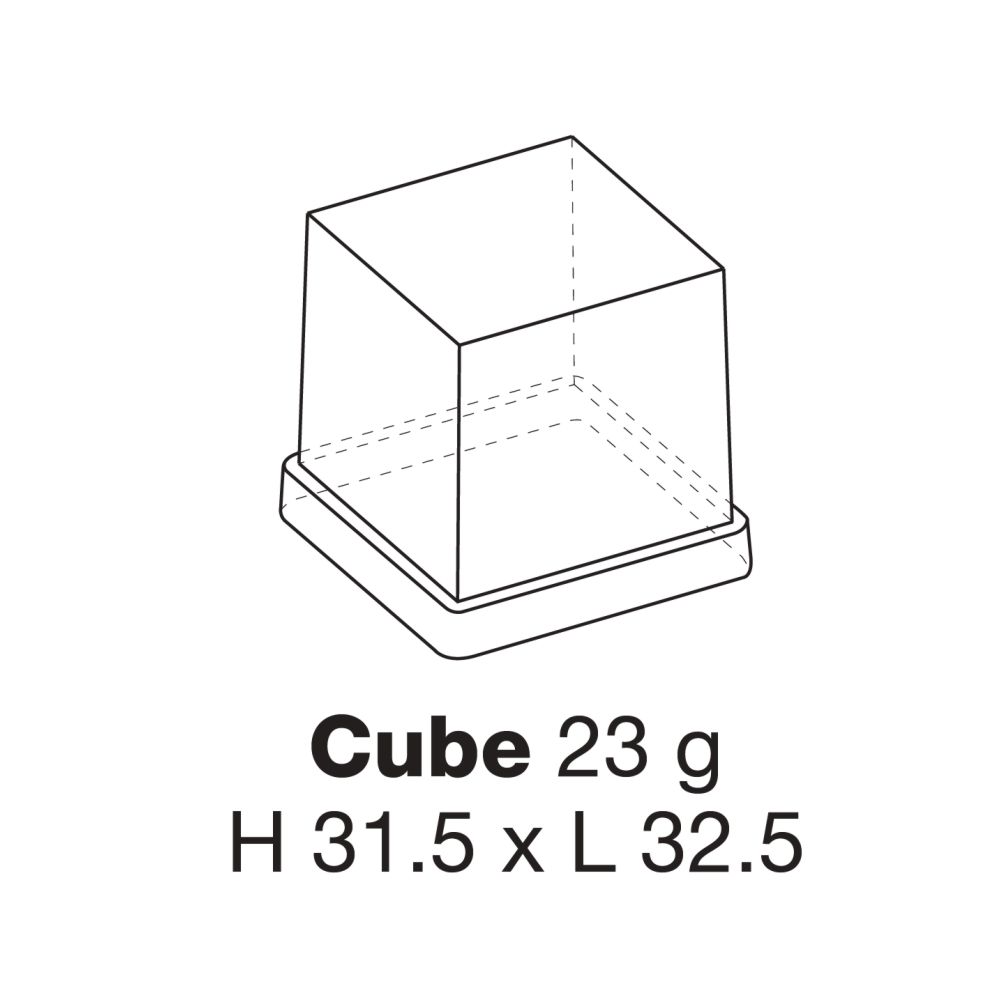

Ice type: B-Qube (approx. 23 g)
Ice production/day¹: 152 kg
Container capacity: 65 kg (rated capacity)
Condenser type: Air cooling
Refrigerant: R290
Integrated drain pump³: yes
Connection (W)²: 1150
Fuse: 16 A

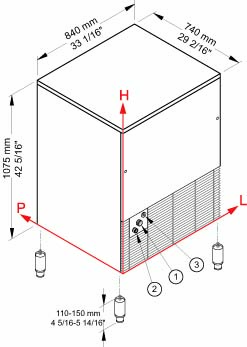

Dimensions (W×D×H): 840 × 740 × 1150 mm
Height of feet: 110–150 mm
Weight: 118 kg
Finish: Brushed AISI 304 stainless steel
Can be installed under a counter: no

Performance for peak times – plus drain pump

When large quantities of high-quality ice cubes are required on long evenings, the Brema CB 1565A HC B-QUBE DP ice cube maker delivers reliably: up to 152 kg per 24 hours, B-Qube cubes weighing approx. 23 g – clear, angular, and dimensionally stable. The integrated drain pump provides flexibility in terms of installation location if there is no drain close to the floor or if the waste water connection is higher up (up to 1.5 m above the machine outlet under ideal conditions).

Spray system: precise layers, visible clarity

Instead of flooding the molds, theBrema spray system distributes fine jets of water over ice molds. The water freezes layer by layer, preventing air pockets from forming. The result: crystal-clear, dense B-Qube ice cubes with a slow melting rate that keep drinks cold for a long time and look great.

Air-cooled, climate-friendly, efficient

The air-cooled version requires good airflow at the installation site to ensure reliable performance and to dissipate heat safely. This ice maker also uses the environmentally friendly refrigerant R290 (propane), which has a very low greenhouse effect and cools efficiently.

Hygiene & care: for quick, thorough processes

The AISI 304 stainless steel housing offers smooth, hygienic surfaces. Rounded interior contours and removable components also contribute to easy and quick cleaning – ensuring that hygiene and high ice quality are maintained at all times.

Installation & water quality – prerequisites for rated performance

Flawless operation ensures that the specified nominal values are reliably achieved and that you consistently receive high-quality ice cubes. The prerequisite for this is professional installation. We also recommend a suitable water filter that reduces limescale and particles – this preserves the taste and clarity of the ice cubes, increases the service life of the system, and minimizes maintenance.

Your advantages at a glance

152 kg/24 h – very high daily output

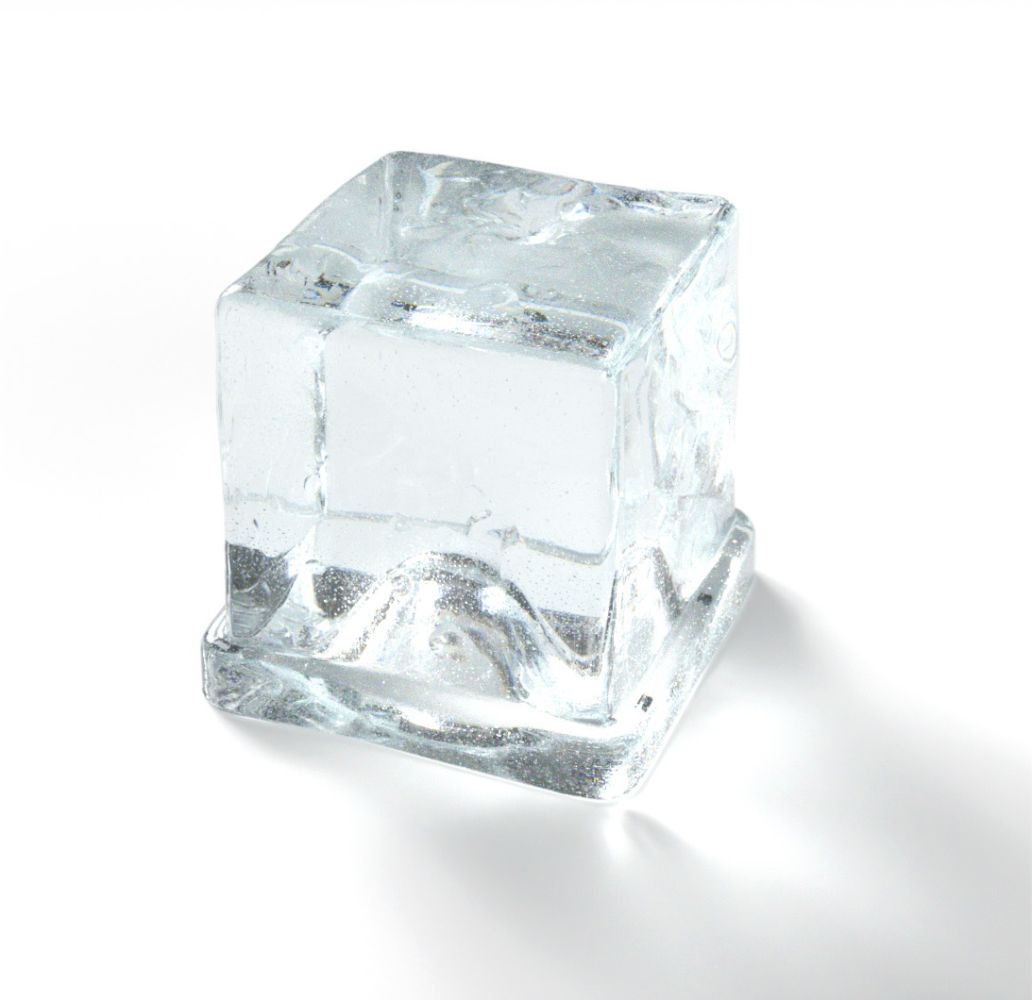

B-Qube ice cubes (approx. 23 g) – clear, angular, dimensionally stable
Integrated drain pump for flexible installation³
Spray system: layer-by-layer ice formation without air pockets
R290 (propane) – efficient and environmentally friendly
AISI 304 stainless steel – hygienic, easy to maintain, durable

Spare parts, accessories & service

If you have any questions about Brema ice makers, our customer service team will be happy to assist you with planning and configuration. If you need replacement parts during operation, you can quickly find replacement and wear parts as well as suitable accessories in the replacement part finder at Barstuff.de.

The Brema CB 1565A HC B-QUBE DP ice cube maker offers maximum ice production and B-Qube ice cubes for bars, hotels, or caterers with very high daily requirements. The integrated drain pump provides additional flexibility for challenging wastewater conditions.

Ice type:	Cubes
Production method:	Negative spray
Cooling:	Air-cooled
Special equipment:	Drain pump

Unless otherwise stated, all specifications are the manufacturer's nominal ratings.
¹Ambient temperature: +21 °C, water temperature: +15 °C
²Ambient temperature: +43 °C
³Maximum delivery head according to the manufacturer up to 1.5 m under ideal conditions
