Brema Ice Cube Maker CB Series 249A HC B-QUBE DP - Cubes (29 kg)

Name: Brema Ice Cube Maker CB Series 249A HC B-QUBE DP - Cubes (29 kg)
Brand: Brema
SKU: 13560
Price: 1560.54 EUR
Availability: OutOfStock

order no. 13560

€1,560.54

€2,346.68

Prices incl. VAT plus shipping costs, free shipping (DE) from 99€**

Details

Not in stock

delivery time:

10-18 Working days

Description FAQ Downloads Manufacturer

Product properties for Brema Ice Cube Maker CB Series 249A HC B-QUBE DP - Cubes (29 kg)

Ice type: B-Qube (approx. 23 g)
Ice production/day¹: 29 kg
Container capacity: 9 kg (nominal capacity)
Condenser type: Air cooling
Refrigerant: R290
Integrated drain pump³: yes
Cleaning program: yes
Connection (W)²: 270
Fuse: 10A

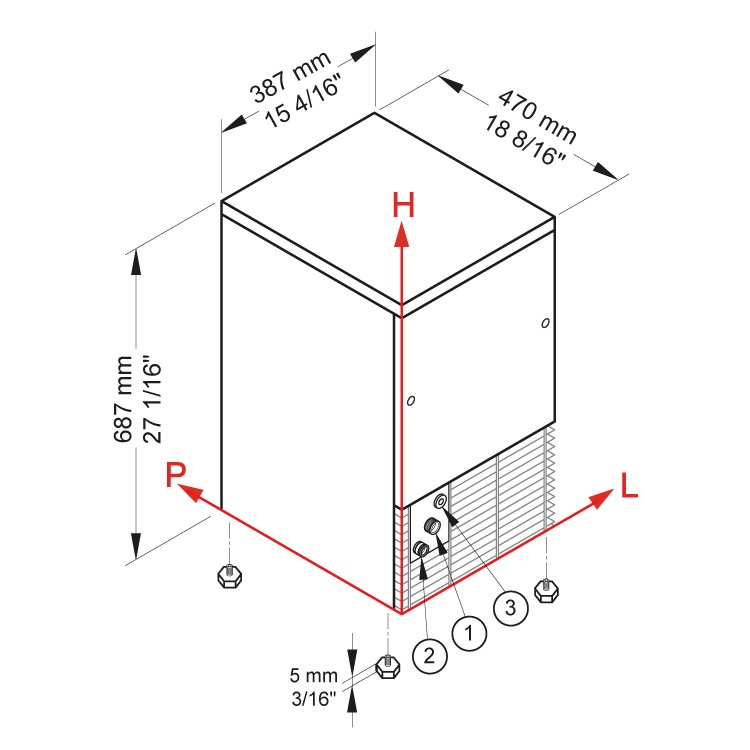

Dimensions (W×D×H): 387 × 470 × 687 mm
Height of feet: 5 mm
Weight: 32 kg
Finish: AISI 304 stainless steel, brushed
Can be installed under a counter: yes (min. 5 cm clearance on all sides according to manufacturer's specifications)

More volume, more impact – 29 kg class with drain pump

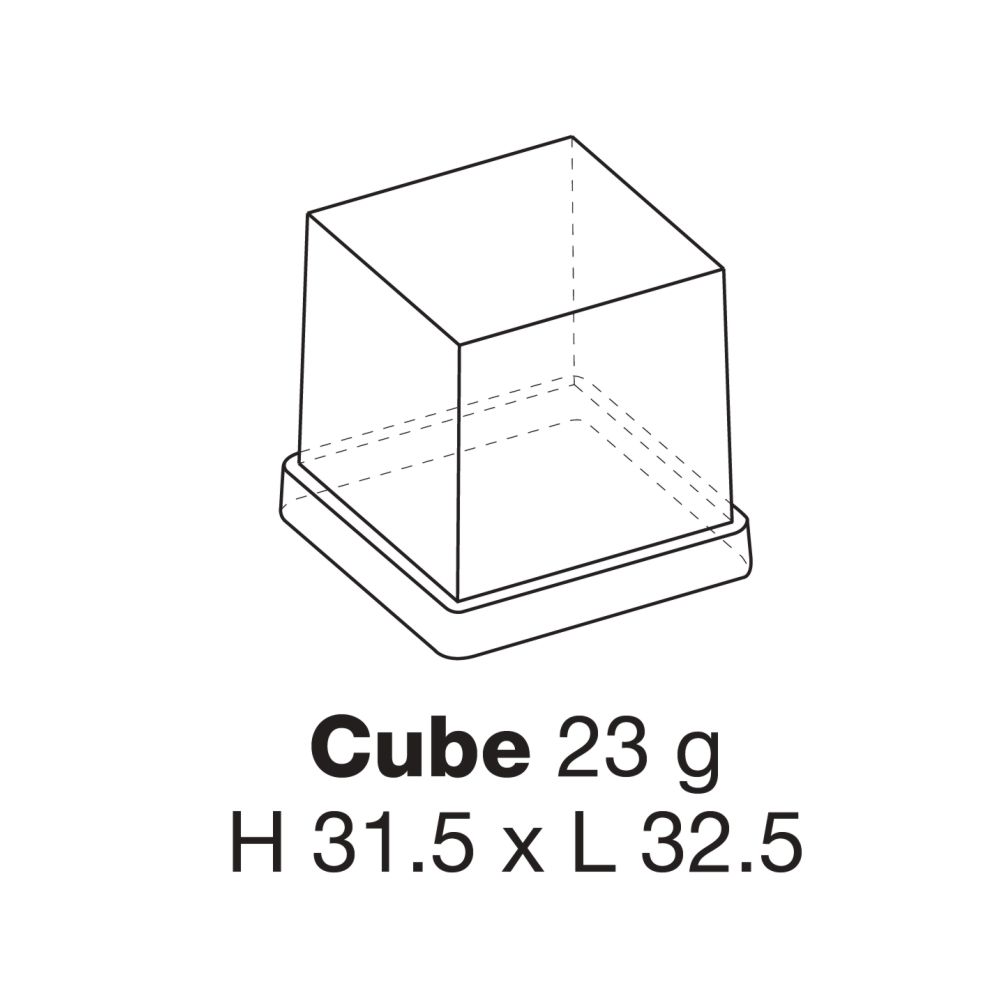

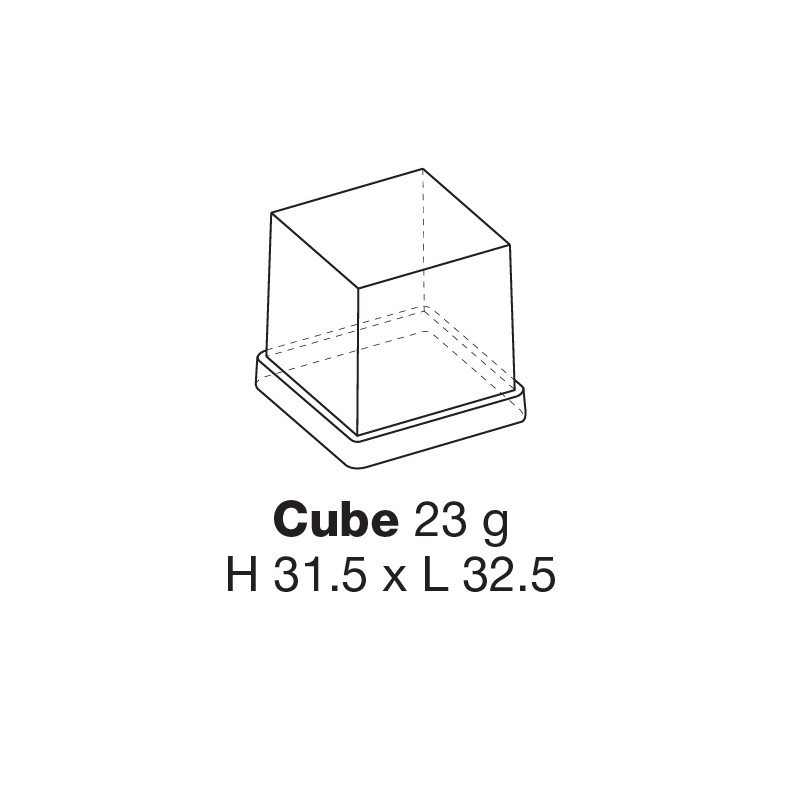

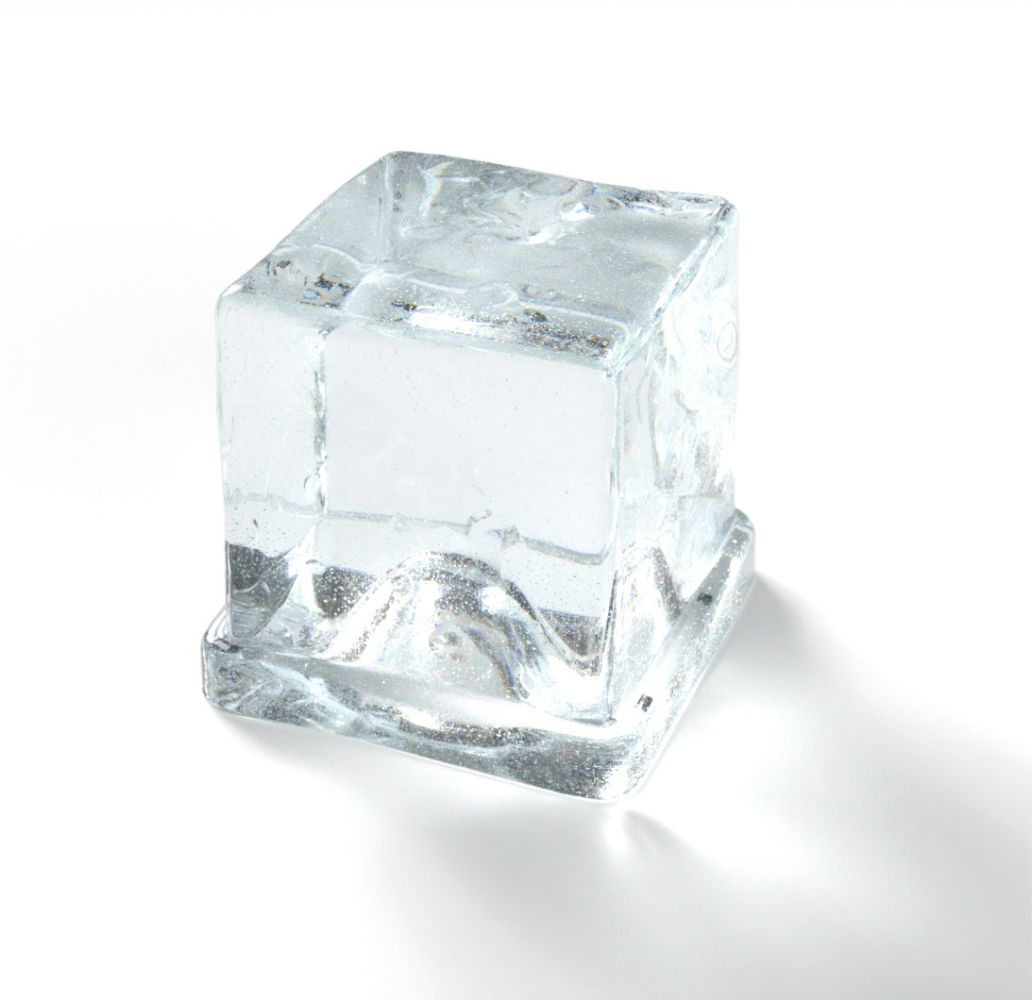

The Brema CB 249A HC B-QUBE DP ice cube maker is designed for bars, cafés, restaurants, and hotels with reliable daily requirements. It produces up to 29 kg of ice cubes per 24 hours. The B-Qube ice cube combines elegance and function: a clear, solid, individually molded cube (approx. 31.5 × 32.5 mm) weighing approx. 23 g – ideal when drinks need a striking appearance and slow melting properties (e.g., long drinks, signature cocktails, highballs).

Integrated drain pump: flexible placement without floor drain

The integrated drain pump actively transports excess water from production and cleaning into the drain. This means that the device can also be installed where there is no floor drain or where the drain is higher (up to 1.50 m above the machine outlet under ideal conditions) – giving you more freedom when planning existing counters or compact bars.

Spray system: dense, clear ice cubes layer by layer

The spray system wets ice molds with fine jets of water; the water freezes layer by layer without air pockets. The result is ice cubes with high density, maximum clarity, and a striking appearance in the glass.

Efficiency & cooling

R290 (propane) is used as the refrigerant – energy-efficient and sustainable in use, environmentally friendly due to its very low greenhouse effect. The air-cooled version requires sufficient distance from other appliances and walls to allow the warm exhaust air to be safely discharged.

Hygiene & Care

AISI 304 stainless steel housing, rounded inner edges, and removable components reduce the amount of work required. The integrated cleaning program supports regular, thorough cleaning – for maximum hygiene with minimal maintenance and consistently reliable ice quality.

Installation & water quality

Professional installation is a prerequisite for the specified performance. We recommend a water filter to improve the taste and clarity of the ice cubes and to effectively protect the system from deposits.

Your advantages at a glance

Clear, voluminous ice cubes (approx. 23 g) that melt slowly
29 kg/24 h – reliable even during peak times
Integrated drain pump – freer installation without floor-level drain ³
Air-cooled – no additional water consumption during operation
R290 (propane) – efficient, modern, operation-conscious
AISI 304 stainless steel – robust, hygienic, service-friendly
Cleaning function as a supplement to basic cleaning

Spare parts, accessories & service

Do you need spare parts or upgrades? You will find what you are looking for in the spare parts finder at Barstuff.com. Our team provides personal advice – from technical queries to the optimal configuration.

The Brema CB 249A HC B-QUBE DP ice cube maker is the first choice for distinctive B-Qube ice cubes (23 g) with a daily output of up to 29 kg and flexible installation thanks to an integrated drain pump.

Construction:	Can be built under, Free-standing
Ice type:	Cubes
Production method:	Negative spray
Cooling:	Air-cooled
Special equipment:	Automatic cleaning system, Drain pump

Unless otherwise stated, all specifications are the manufacturer's nominal ratings.
¹Ambient temperature: +21 °C, water temperature: +15 °C
²Ambient temperature: +43 °C
³Maximum delivery head according to the manufacturer up to 1.5 m under ideal conditions
