Hoshizaki Ultra Cube IM-240DWPE-U - standard cube (28 x 28 x 32mm) 209kg
€6,214.18*
€8,877.40 (30% saved)Product information "Hoshizaki Ultra Cube IM-240DWPE-U - standard cube (28 x 28 x 32mm) 209kg"

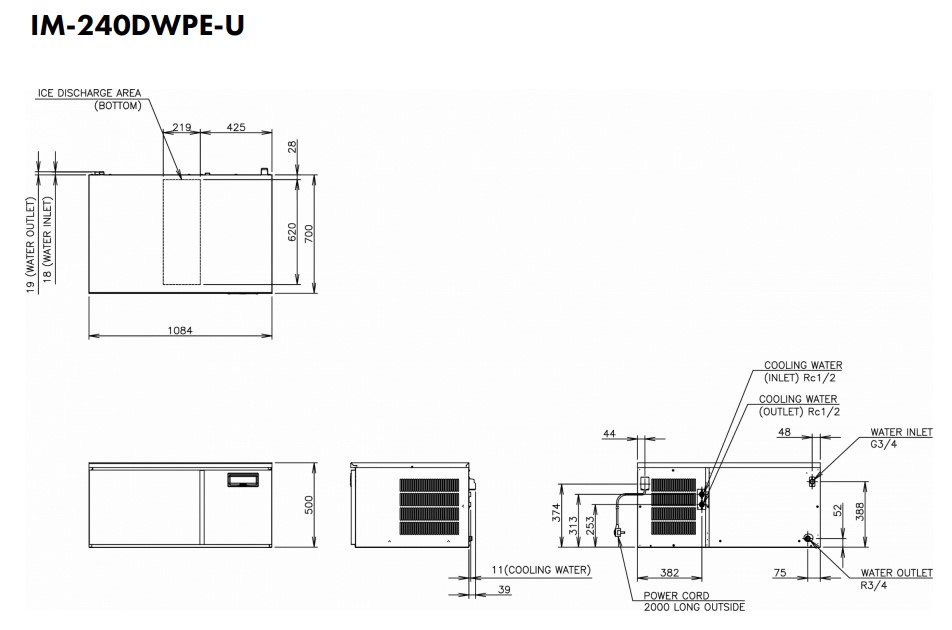

Dimensions (W x D x H) (cm): 108,4 x 70 x 50
Refrigerant: R290
Cooling system: water-cooled
Power supply: 1/220–240 V/50 Hz
Power consumption (kW): 0.76
Ice type: cube ice
Cube size (mm): 28 x 28 x 32
The Hoshizaki IM-240DWPE-U series combines water-cooled refrigeration technology with a modular and stackable design as well as integrated UV-C hygiene functionality. It is developed for professional environments where increasing ice demand, challenging installation conditions and the highest hygiene standards must be met. The water-cooled system ensures reliable operation even in high ambient temperatures or locations with limited air circulation.
As modular ice machines, the units are supplied without an integrated storage bin and are designed to be combined with separate ice storage bins, which must be selected and installed according to specific requirements. The stackable construction allows multiple units to be installed on top of each other, enabling flexible and space-saving expansion of production capacity.
Ice is produced using the proven closed cell system: each ice cube is formed individually using fresh water, while excess water is efficiently drained away. Automatic rinse cycles reduce mineral build-up and ensure clear, compact, and neutral-tasting ice cubes.
A closed water circuit protects the production process from contamination and supports consistently high ice quality. At the same time, a magnetic DC water pump without direct coupling ensures efficient water flow and increases operational reliability and system longevity.
The integrated UV-C hygiene function provides continuous disinfection of water-carrying components and circulating water, supporting enhanced hygiene throughout the entire production process.
The electronic control system continuously monitors the production process and ensures stable performance even under changing conditions. Integrated cleaning and maintenance functions simplify daily operation and support reliable long-term use.
The water-cooled refrigeration system ensures consistent output independent of ambient temperature and enables reliable ice production even in demanding installation environments. The units use the natural refrigerant R290 and are designed for energy-efficient operation. The unit is supplied with an ice chute, installation kit, and ice scoop, and is compatible with a range of Hoshizaki storage bins that must be ordered and installed separately.
Note: For water-cooled units, the condenser circuit should be connected to a closed-loop system. Connecting such equipment directly to the mains water supply may violate local water authority regulations.
| Ice type: | Cubes |
|---|---|
| Cooling: | Water-cooled |
| Cube size: | Standard cube (28 x 28 x 32mm) |
| Special equipment: | UV disinfection system |
