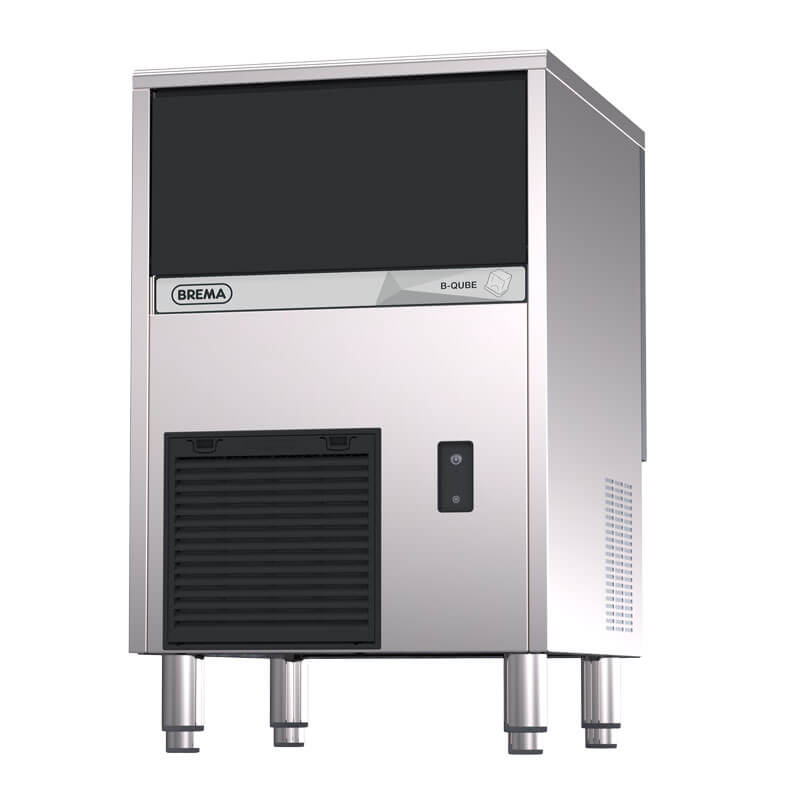

Brema Ice Cube Maker CB Series 316A HC B-QUBE DP - Cubes (38 kg)

Name: Brema Ice Cube Maker CB Series 316A HC B-QUBE DP - Cubes (38 kg)
Brand: Brema
SKU: 13563
Price: 1846.22 EUR
Availability: OutOfStock

order no. 13563

€1,846.22

€2,776.27

Prices incl. VAT plus shipping costs, free shipping (DE) from 99€**

Details

Not in stock

delivery time:

10-18 Working days

Description FAQ Downloads Manufacturer

Product properties for Brema Ice Cube Maker CB Series 316A HC B-QUBE DP - Cubes (38 kg)

Ice type: B-Qube (approx. 23 g)
Ice production/day¹: 38 kg
Container capacity: 16 kg (rated capacity)
Condenser type: Air cooling
Refrigerant: R290
Integrated drain pump³: yes
Cleaning program: yes
Connection (W)²: 340
Fuse: 10 A

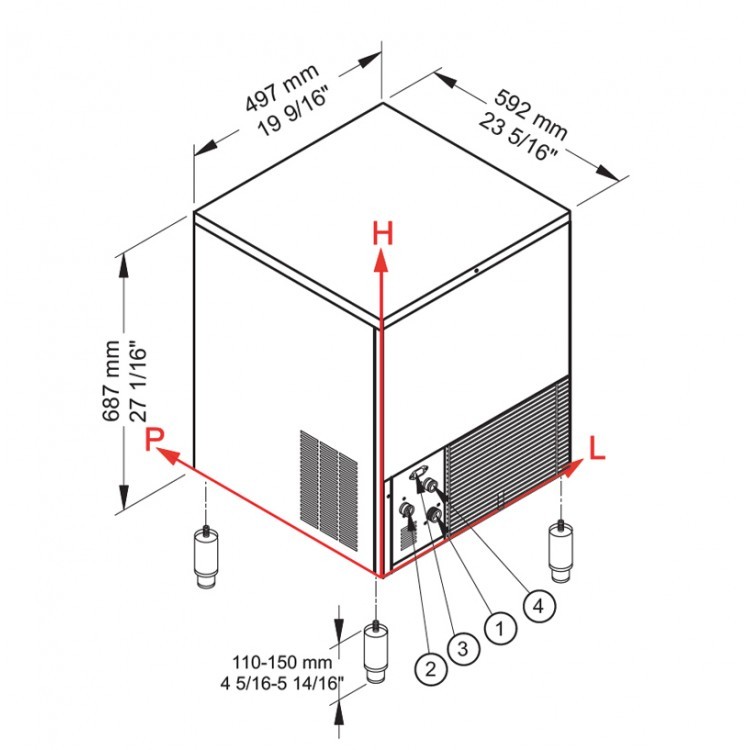

Dimensions (W×D×H): 497 × 592 × 687 mm
Height of feet: 110–150 mm
Weight: 40 kg
Finish: AISI 304 stainless steel, brushed
Can be installed under a counter: yes (min. 5 cm clearance on all sides according to manufacturer's specifications)

38 kg capacity with B-Qube – clear, voluminous, impressive

The Brema CB 316A HC B-QUBE DP ice cube maker delivers up to 38 kg of ice cubes per 24 hours – reliably, clearly and dimensionally stable. The B-Qube combines elegance with function: a clear, solid, individually molded cube (approx. 31.5 × 32.5 mm, approx. 23 g) that is easy to process and gives drinks a modern, eye-catching look. Ideal for bars, restaurants, and hotels where presentation and melting behavior are equally important.

Integrated drain pump: more freedom in terms of installation location

The integrated drain pump actively transports excess water from production and cleaning into the drain (delivery height up to 1.50 m above the machine outlet under ideal conditions) – helpful if there is no floor drain or if the drain is higher. This allows for flexible installation, for example in existing counters or narrow bars.

Spray system: layer by layer to clear, dense ice cubes

Inside the ice maker, theBrema spray process finely sprays water into ice molds and builds up ice layer by layer. This results in ice cubes without air pockets – crystal clear, compact in density, and slow to melt.

Air-cooled & R290 refrigerant

The air-cooled version requires free airflow to dissipate the heat generated by the device. R290 (propane) is used as the refrigerant – natural, efficient, and with a very low greenhouse effect.

Hygiene & care

The ice maker has an AISI 304 stainless steel housing, rounded inner edges, and removable components, which facilitates regular, thorough cleaning. An integrated cleaning program complements the care – for high hygiene with manageable maintenance effort.

Installation & water quality

Professional installation is a prerequisite for the ice machine to deliver its specified performance. A water filter – as recommended by us – improves the taste and clarity of the ice cubes and reliably protects the system from deposits.

Your advantages at a glance

B-Qube: clear, voluminous ice cubes (approx. 23 g) with a trendy look
38 kg/24 h – high daily output for peak times
Integrated drain pump – flexible installation without floor-level drainage³
Spray system for clear, dense ice cubes without air pockets
R290 (propane) – efficient, sustainable
AISI 304 stainless steel – robust, hygienic, service-friendly

Spare parts, accessories & service

Spare parts and matching accessories can be found in the spare parts finder at Barstuff.de; our team will assist you with technical questions and the optimal configuration.

The Brema CB 316A HC B-QUBE DP ice cube maker is ideal for bars and hotels that want to combine striking ice cube appearance with flexible installation.

Construction:	Can be built under, Free-standing
Ice type:	Cubes
Production method:	Negative spray
Cooling:	Air-cooled
Special equipment:	Automatic cleaning system, Drain pump

Unless otherwise stated, all specifications are the manufacturer's nominal ratings.
¹Ambient temperature: +21 °C, water temperature: +15 °C
²Ambient temperature: +43 °C
³Maximum delivery head according to the manufacturer up to 1.5 m under ideal conditions
