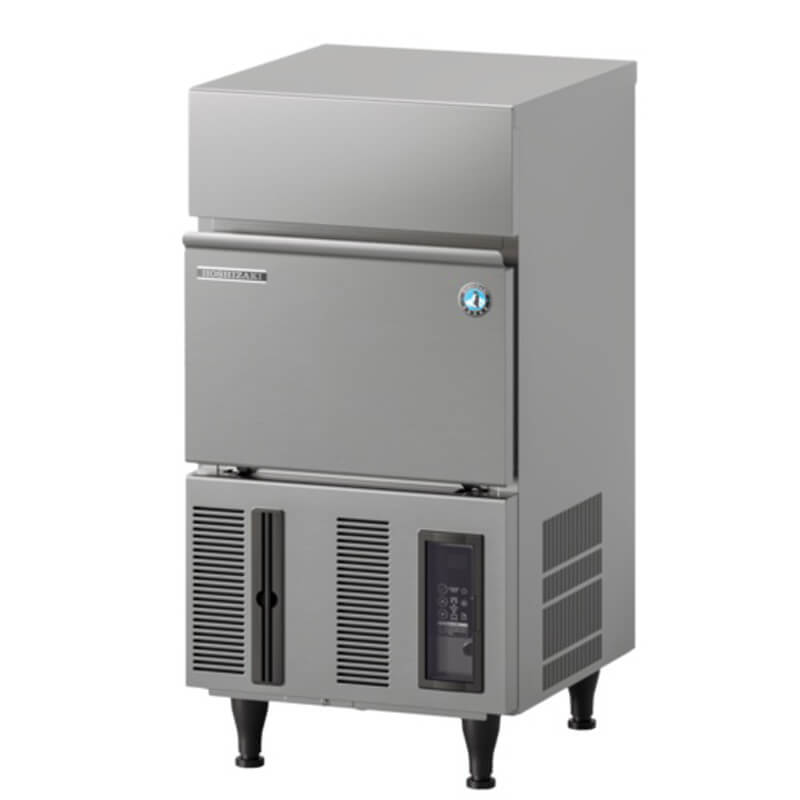

Product information "Hoshizaki IM-30CPE - standard cube (28 x 28 x 32mm) 34kg"

Ice production (24h): up to 34 kg

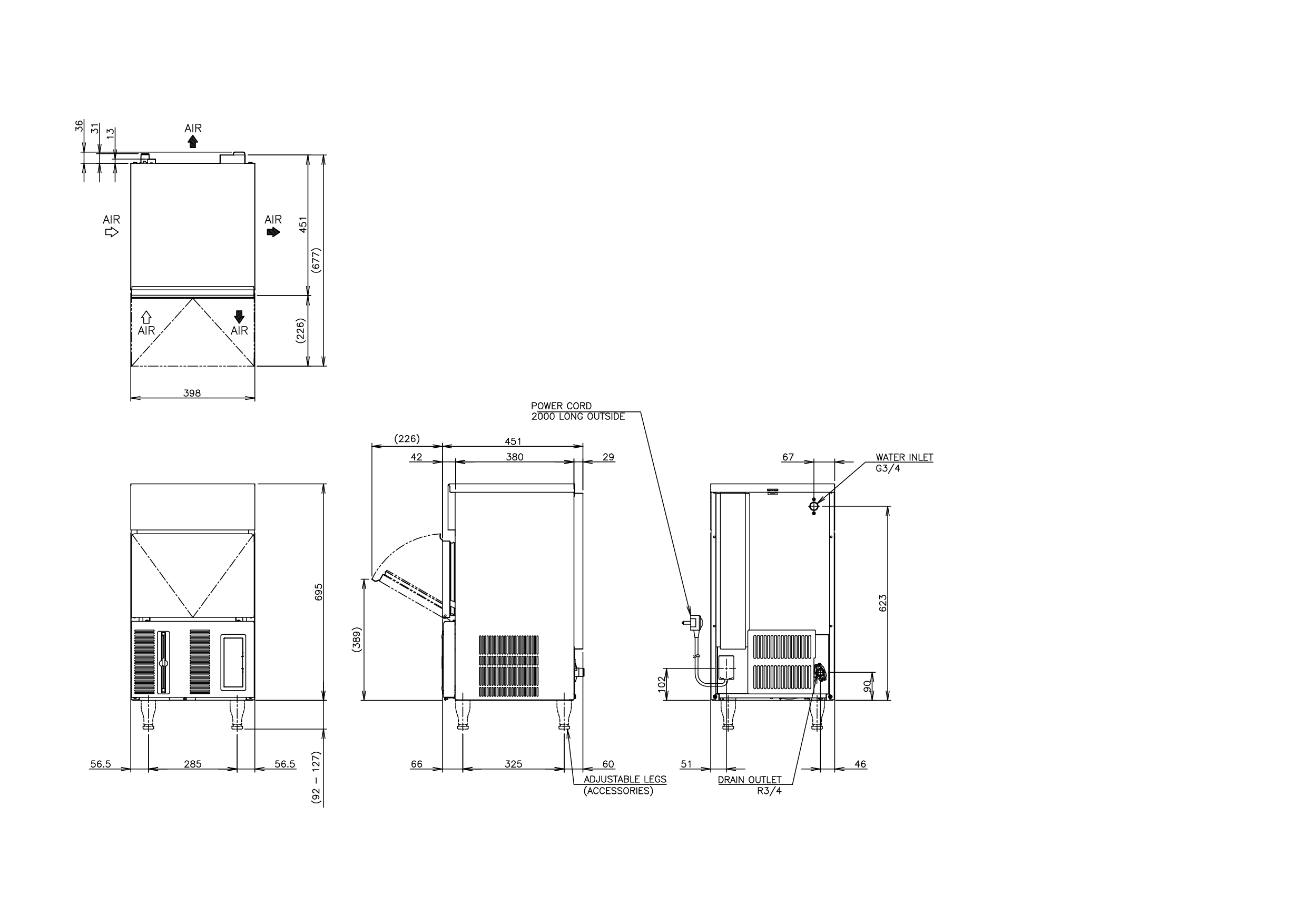

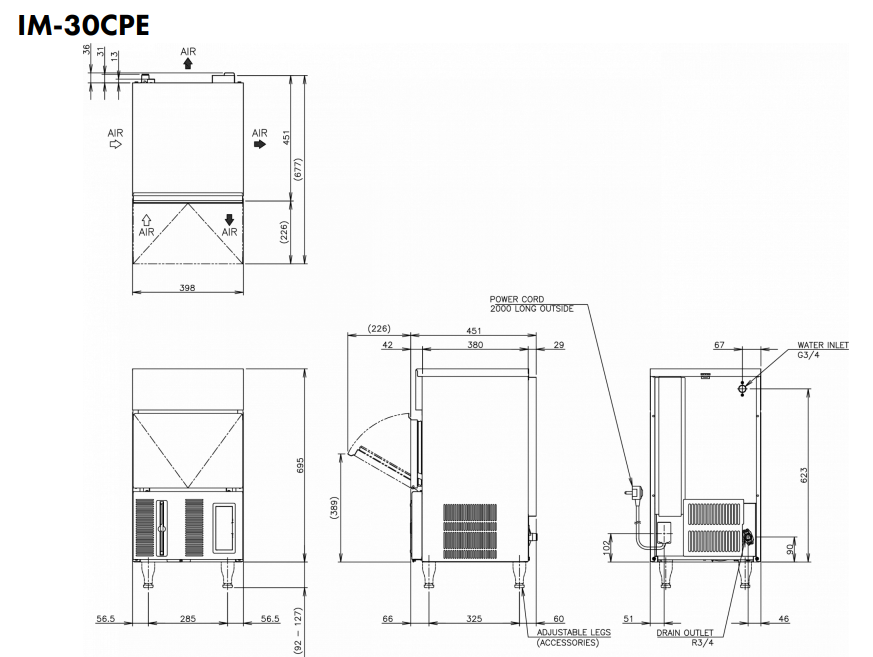

Dimensions (W x D x H) (cm): 39,8 x 45,1 x 69,5
Height including feet (cm): 78,7-82,2
Refrigerant: R290
Cooling system: air-cooled
Power supply: 1/220–240 V/50 Hz
Power consumption (kW): 0.215
Ice type: cube ice
Cube size (mm): 28 x 28 x 32
Storage bin (kg): 11,5
Compact self-contained ice machines with integrated storage bin for professional applications

The Hoshizaki IM-30CPE series combines compact dimensions with professional cube ice production and is particularly suitable for smaller bars, cafés, restaurants, and service areas with limited space. Thanks to the plug-and-play design and integrated storage bin, the units can be installed quickly and used flexibly.

The models are suitable for built-in and undercounter installation, making them ideal for workspaces with restricted installation space. The integrated storage bin enables an independent ice supply without additional system components.

The proven closed cell system is used for ice production: each ice cube is formed individually using fresh water, while excess water is carefully drained away. Automatic rinse cycles reduce mineral build-up and support the production of clear, compact, and neutral-tasting ice cubes.

A closed water circuit reliably protects the ice production process from contamination and ensures consistently high ice quality. At the same time, the magnetic DC water pump without direct coupling provides efficient water circulation and increases operational reliability as well as system longevity.

The electronic control system continuously monitors all production processes and ensures stable ice output even under changing conditions. Automatic cleaning functions and easily accessible maintenance components simplify daily operation.

The air-cooled refrigeration system enables energy-efficient operation while maintaining reliable ice production. The units use the natural refrigerant R290. A UV-C hygiene function can optionally be retrofitted. The unit is supplied with an installation kit, adjustable feet, and an ice scoop.

This model produces standard ice cubes (28 × 28 × 32 mm) with a capacity of up to 34 kg per 24 hours – ideal for smaller bars, cafés, and service areas requiring compact, slow-melting ice cubes on a daily basis.
Construction: Can be built under
Ice type: Cubes
Production method: Negative spray
Cooling: Air-cooled
Cube size: Standard cube (28 x 28 x 32mm)
Ice Cube Size: L: 23g (28x28x32mm)
Warranty : 3 years (professional installation)

Hoshizaki

Hoshizaki Europe B.V. - HQ
Burgemeester Stramanweg 101
1101AA Amsterdam
Noord-Holland
The Netherlands
sales [at] hoshizaki.nl

Hoshizaki Deutschland
Zweigniederlassung der Hoshizaki Europe B.V.
Kampstr. 16
31180 Giesen-Hasede
Germany
vertrieb [at] hoshizaki.de

Please enter a valid email address.
Please enter a valid question.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are mandatory.

Question : Bonjour, Cette machine est-elle équipée d'une pompe de relevage / vidange svp ? Par ailleurs, est-elle livrée et installée par vos soins ? Merci d'avance

Answer:
Bonjour, Ce modèle est livré sans pompe de refoulement. Le modèle suivant est équipé d'une pompe de refoulement Hoshizaki Ultra Cube IM-30CPE-U, réf. 12954-1. La machine à glace est livrée par transporteur, franco bordure de trottoir. Nous assurons l'installation des machines à glace ; en dehors de Berlin, des frais de déplacement sont facturés au kilomètre. Cordialement

Question : Ist es möglich, die Füße zu entfernen?

Answer:
Ja, die Füße können komplett entfernt werden.

Question : Wie viel Platz muss rechts, links, oben und unten noch sein, wenn man einen Eiswürfelbereiter IM-30CNE-HC in einen Unterbau 3-seitig geschlossen stellt.

Answer:
Keinen, dieser Eisbereiter ist voll einbaufähig.
